| Displacement | 610 l |
|---|---|
| Dimension | 400 mm |
| Color | Orange |
| Material | Polyethylene |
| Weight | 47 kg |
| Refliectiv | No |
| Shipping time | 3-7 days |
| Production time of 100 pcs | 12 days |

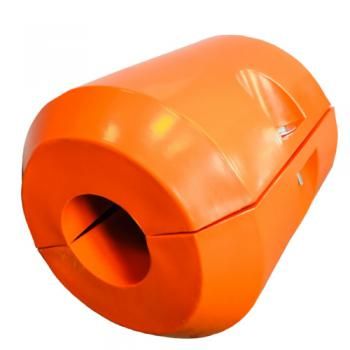

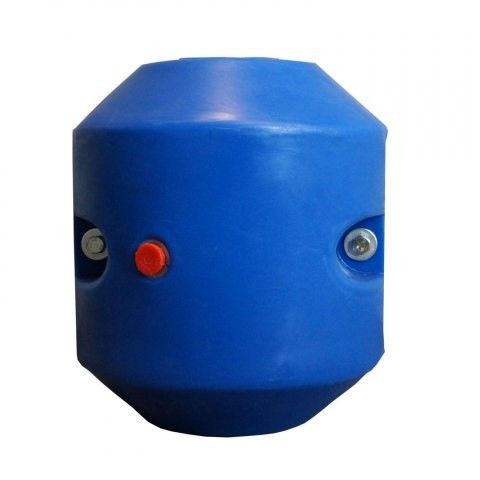

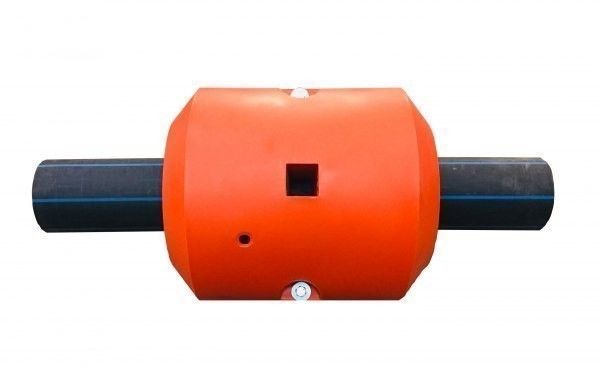

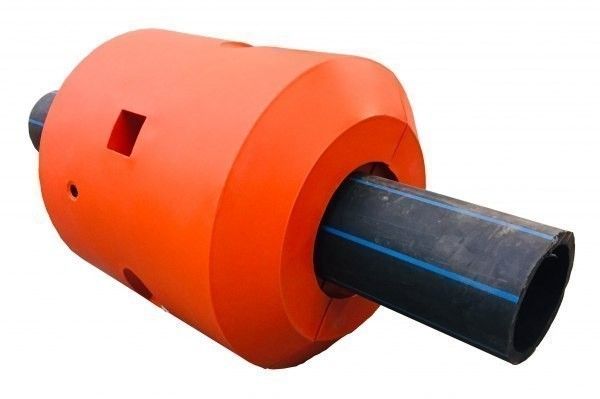

Sorfan Pipe Float 400 mm – Heavy-Duty Buoyancy Module for Dredging and Industrial Pipelines
Are you planning to construct a floating discharge pipeline, route utility power cables across a reservoir, or support a submersible pump? The Sorfan Cable and Pipe Float 400 mm is a professional, European-manufactured modular buoyancy unit that provides an exceptionally stable and safe foundation for all marine and dredging installations. Thanks to its advanced design, it delivers outstanding load-bearing capacity and long-term durability in extreme environments.
Our high-visibility orange polyethylene float features a precision-engineered internal diameter of 400 mm (matching pipes and cables of this size) and an external diameter of 820 mm. With a total length of 1100 mm, the module provides a reliable, real buoyancy of 450 kg, keeping heavy steel or HDPE pipelines, suction hoses, and high-voltage cables floating stably without submersing.
As a direct European manufacturer, Sorfan guarantees premium build quality. Every float is manufactured using state-of-the-art rotational molding (rotomolding) of virgin high-density polyethylene (HDPE) with extra thick walls. This construction results in a seamless, monolithic body that is highly resistant to heavy impacts, crushing, and bottom abrasion. It is chemically inert to saltwater corrosion and harsh mining slurries. UV stabilizers prevent structural degradation, while full frost resistance allows the pipeline to overwinter in the ice without requiring disassembly.
Installation of the floats is remarkably quick and simple. The symmetrical two-part interlocking shell is clamped directly onto the pipeline using **heavy-duty hot-dip galvanized steel bolts** (stainless steel optional), preventing sliding on the pipe and ensuring corrosion-free fastening. As a direct manufacturer, we offer the fastest lead times, factory-direct wholesale pricing, EU-wide shipping, and full custom branding (custom RAL color selection and permanent client logo embossing).
Sorfan Pipe Floats – Key Features and Technical Advantages:
- Direct Manufacturer: European production, no middleman markups, competitive pricing, and fast commercial delivery.
- Seamless HDPE Construction: Rotationally molded thick-walled shell with zero seams – exceptional impact and crush resistance.
- Vibrant Visibility: High-visibility safety orange color ensures clear markings on water, minimizing collision hazards.
- All-Weather Performance: Full frost and ice resistance allows the system to overwinter in frozen waters.
- Plug & Play Assembly: Symmetrical two-part shell quickly bolts onto the pipe using basic tools.
Technical Specifications and Dimensions Table
| Internal diameter (pipe/cable fit) | 400 mm |
| Float external diameter | 820 mm |
| Total length | 1100 mm |
| Nominal buoyancy capacity | 450 kg |
| Dry weight (mass) | 43 kg |
| Body material | High-density polyethylene (HDPE) with UV protection |
| Primary applications | Dredging, aggregate slurry transport (sand, gravel), houseboats, marinas, floating solar (FPV), submersible pumps |
Expert opinion – Stability and safety in heavy dredging and marine pipelines
In floating pipeline design, maintaining an adequate buoyancy reserve is paramount for site safety. At Sorfan, we recommend a buoyancy capacity of at least 150-200% of the pipeline's total filled mass. The 400 mm pipe float features a robust, thick-walled HDPE shell that dampens wave impacts, vessel collisions, and ice expansion stress. The seamless monolithic shell prevents water ingress, which, combined with hot-dip galvanized hardware, ensures decades of maintenance-free service in quarries, dredging ports, and floating solar (FPV) arrays.
FAQ – Frequently Asked Questions about Pipe Floats
Does Sorfan manufacture its own pipe floats?
Yes, Sorfan is a direct European manufacturer of all our floats. Operating our own automated production park allows us to guarantee complete quality control, the fastest lead times, and factory-direct wholesale pricing.
What are the primary applications of these pipe floats?
Our floats are widely used for floating dredging lines, aggregate slurry transport (sand, gravel), routing high-voltage power cables (especially for floating solar FPV), houseboat construction, marinas, and submersible pump support.
Do Sorfan floats need to be removed from the water in winter?
No. Our floats are made of high-density polyethylene (HDPE), which retains its elasticity and impact strength down to -30°C / -40°C. They easily withstand ice expansion pressure, allowing the pipeline to overwinter in the ice.
Can I customize the color of the floats or add my corporate logo?
Yes. As a direct manufacturer, we offer custom RAL color matching for bulk orders, alongside permanent customization by embossing your corporate logo directly into the polyethylene shell during manufacturing.
How are international bulk deliveries coordinated?
We manage comprehensive, dedicated transport and freight logistics across Germany, the entire EU, and beyond, delivering your order safely directly to your project site, quarry, or port docks.
What should I do if my pipe diameter does not exactly match the float?
We offer specialized rubber reduction gaskets and collars that allow you to adjust the inside diameter of the float to fit your pipe perfectly, preventing sliding. We can also design custom floats. Contact us via email at: [email protected].
Need a diameter reduction gasket or a custom-designed float?
As a direct manufacturer with our own in-house design office and advanced production capabilities, we can design and manufacture floats with custom inside diameters, lengths, or load capacities. Contact us directly – our engineering team is ready to prepare a custom quote for you!
Write to our email address: [email protected]
Professional Sorfan Pipe Float 400 mm (outer dia. 820 mm, length 1100 mm) is a highly durable, two-part modular buoyancy unit delivering 450 kg of buoyancy with a weight of 43 kg. Manufactured in Europe from thick-walled, UV and frost-proof HDPE. Ideal for floating discharge lines, dredging pipelines, and marine utility cabling (FPV solar).
