Schwimmer für den direkten Bau von Stegen ohne Verwendung anderer Konstruktionselemente
FLEX Cube pontoon system – Ultimate modular flexibility and heavy load capacity
The innovative FLEX Cube pontoon system (modular interlocking plastic cubes) represents the most advanced engineering approach for constructing floating docks and platforms on the water. In our range, the core building blocks are the wide FLEX Cube pontoon system I and the deeper FLEX Cube pontoon system II. These modular floating cubes are engineered to build highly mobile, stable, and safe platforms, meeting the highest standards of durability and performance.
Constructed from rotations-molded high-density polyethylene (HDPE), each module is a seamless solid monolith, guaranteeing 100% watertight integrity throughout its lifespan. This material is fully resistant to freezing temperatures, ice pressure, intense UV exposure, and organic degradation, completely eliminating the need for painting, sealing, or preservative treatments common in wood or steel docks.
Precise technical specifications and flexible FLEX coupling system

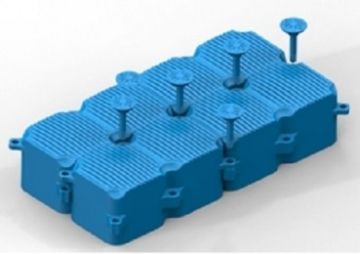

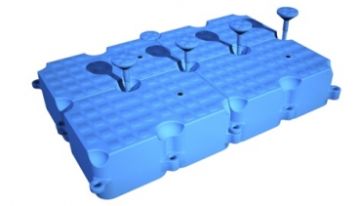

Our modular cubes feature verified technical parameters: the FLEX I system measures 110x70x34 cm and weighs 18 kg, while the FLEX II system measures 100x50x44 cm and weighs 15 kg. Both configurations offer a massive static load capacity of 200 kg per module. The blocks are locked together using dedicated rubber-composite FLEX I & II connectors. The elasticity of these couplers allows the entire platform to float smoothly with wave motion, absorbing fatigue stresses and guaranteeing excellent lateral stability.
Advantages of FLEX Cube Pontoon Systems – Why choose us?
- Unlimited DIY Modularity: Easily build, rearrange, or expand your floating docks into any geometric configuration.
- Heavy Load Rating (200 kg): Securely supports floating restaurants, stages, heavy equipment platforms, and yacht slips.
- HDPE Monolith Longevity: Built in the EU using certified, maintenance-free HDPE polymers.
- Elastomeric Connectors: Dampens wave energy smoothly, maximizing user comfort and eliminating stress fractures.

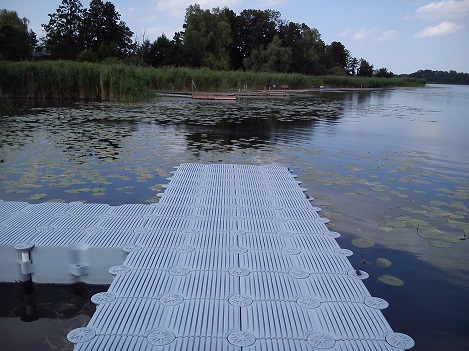

Expert opinion – applications of FLEX Cube pontoon systems
The FLEX Cube modular system is the premier solution where rapid adaptation of water spaces is required. As a Sorfan engineering expert, I recommend the lower-profile FLEX I system (34 cm height) for recreational swimming piers and docks. The taller FLEX II system (44 cm height) is exceptionally well-suited for stable heavy-duty working platforms, diving setups, event stages, and marinas. The rubber coupling blocks dissipate wave energy smoothly, which drastically extends the system's structural lifespan.
FAQ – Frequently asked questions
What is the difference between FLEX I and FLEX II pontoon modules?
The FLEX I module measures 110x70x34 cm, while the FLEX II module measures 100x50x44 cm. FLEX II is 10 cm taller, keeping the deck further from the water. Both modules provide a high static buoyancy rating of 200 kg.
What material are the cubes made of and are they eco-friendly?
The cubes are manufactured in the European Union using high-density polyethylene (HDPE). This material is completely non-toxic, chemically inert, and 100% recyclable, making it safe for sensitive aquatic environments.
Can the FLEX Cube pontoon system stay in the ice during winter?
Yes. The seamless HDPE polymer remains tough and elastic in temperatures down to -30°C. It easily tolerates freezing ice pressure without cracking, meaning the docks do not need to be dismantled in winter.
How are individual modular cubes connected together?

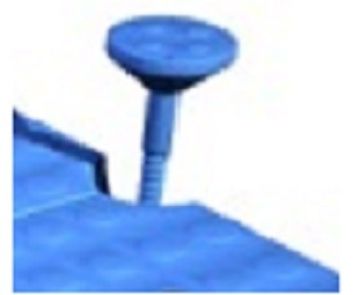

The cubes are secured together using specialized flexible rubber couplers and composite bolts. These rubber connectors act as shock absorbers, dissipating mechanical forces caused by waves.
Is the surface of the FLEX Cubes safe for bare feet?
Yes. The top surface of each module features a textured, non-slip pattern that prevents slipping even when wet. Polyethylene does not overheat in the sun and has no risk of splinters like wood decks.
What are the primary applications of the FLEX Cube system?
Due to its high load capacity and modular nature, it is ideal for swim docks, floating cafes, floating multimedia/event stages, marine working platforms, and yacht marinas.
