Drive-on platform for jet skis with a set of connectors for high board modular docks
| Displacement | 770 kg |
|---|---|
| Dimension | 400 cm x 148,5 cm x 32,5 cm |
| Color | Grey |
| Material | Polyethylene |
| Weight | 165 kg |
| Usable area | 5,92 qm |
| Refliectiv | No |
| Shipping time | 7-14 days |
| Production time of 100 pcs | 20 days |
Drive-on platform for jet skis with a set of connectors for high board modular docks

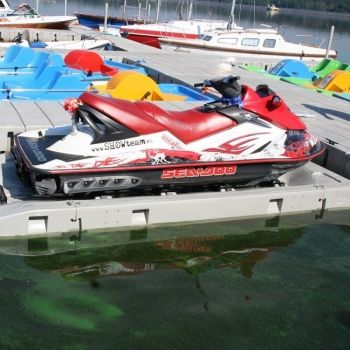

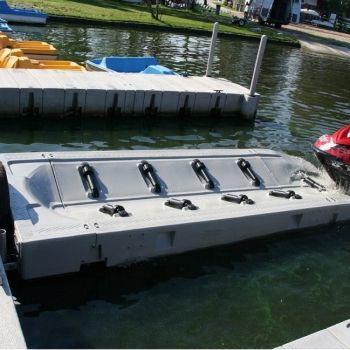

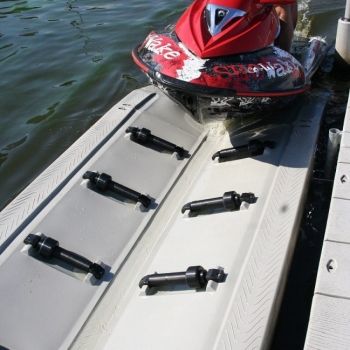

Looking for a professional dry-docking solution to keep your personal watercraft (PWC) safe and dry? The offered **Drive-on platform for jet skis with a set of connectors for high board modular docks** is a state-of-the-art drive-on platform (dry dock) designed to let you drive your jet ski completely out of the water effortlessly. By elevating the jet ski, the fiberglass hull is 100% protected against marine growth, osmosis, and wave-induced mechanical damage. The high-strength HDPE frame is fully frostproof and UV-resistant, allowing the dock to remain frozen in the ice without disassembly. Integrated polyurethane rollers align perfectly with your hull, minimizing friction and protecting the gelcoat.

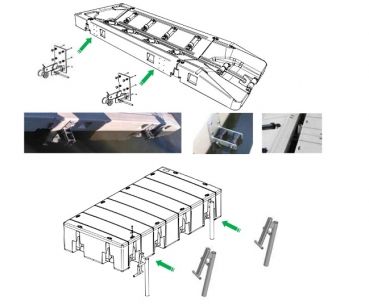

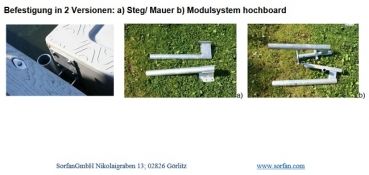

The Sorfan jet ski port represents peak ergonomics and simplicity. Its stable, buoyant design makes boarding, refueling, routine cleaning, or putting on the protective cover safe and convenient. Ball-bearing polyurethane rollers ensure smooth drive-on docking and effortless launch recovery. The port can be dynamically coupled to low board docks, highboard docks (WB), or concrete quays using specialized connection kits.
Technical Specification
| Drive-on platform dimensions | 142 x 200 x 30 cm (złącza WB) |
| Freeboard height | 30 cm |
| Dry weight | 42 kg |
| Max. buoyancy capacity | 450 kg |
| Material | High-density polyethylene (HDPE) with UV protection |
| Color | Light grey / White |
Key Technical Features and Benefits:
- Optimal Slip-Resistance: Textured non-skid surface pattern ensures secure footing under wet conditions.
- Year-Round Durability: Mrozoodpornost and ice-overwintering proof allow the dock to safely freeze in the water.
- EU-grade HDPE Quality: Produced in the EU from certified, high-density polyethylene for maximum durability.

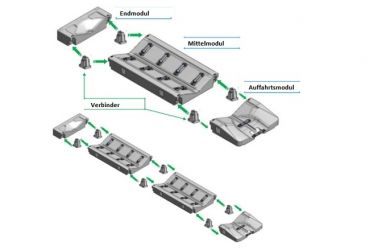

- Flexible Modular Design: Symmetrical mounting allows quick connection into L, T, or U-shaped piers.
- Zero Upkeep Costs: Requires no painting, chemical impregnation, or algae scrubbing like wood or steel.
Available accessories for modular floating docks
To fully customize your ready-made floating docks to your requirements, we offer a comprehensive range of premium accessories:
- Cleat / Knagge – Essential for secure mooring of boats and PWCs.
- Safety barrier Series W (1.12 m) – Significantly enhances user safety.
- Post connector WS 5.4 kg (Series highboard) – Heavy-duty connection for anchoring piles.
- Float connector WL 2.3 kg (Series highboard) – Symmetrical coupling of float modules.
- Aluminium dock ladder – Safe and easy access from the water.
Expert opinion – Hydrotechnical stability and ice resistance of modular docks
As a marine infrastructure expert, I highly recommend Sorfan modular floating docks made from premium HDPE. Sourced from single-piece, rotomolded hulls, these modules feature outstanding impact strength and never rot. The most significant financial benefit is their ability to withstand freezing lake ice, eliminating annual storage costs. When planning, matching the freeboard height and selecting flexible rubber couplers is vital to successfully damp wave dynamics.
FAQ – Frequently Asked Questions
Are Sorfan floating docks eco-friendly?
Yes. Symmetrical modular docks are manufactured in the EU from high-density polyethylene (HDPE), which is 100% recyclable and entirely non-toxic to aquatic ecosystems.
Do ready-made docks require seasonal removal in winter?
No. The monolithic HDPE polymer is fully frostproof and ice resistant, allowing modular floating docks to safely remain in the ice all winter.
How are individual dock modules connected together?
The modules are secured using flexible rubber couplers and composite bolts. This system absorbs wave motion, ensuring excellent roll stability.
Is the dock surface slip-resistant?
Yes. The top surface of each module has a textured, non-skid pattern that prevents slips even when wet.
What accessories can be installed on modular floating docks?
We offer a wide selection of accessories including aluminium swim ladders, galvanized steel safety railings, mooring cleats, anchoring rollers, and fenders.
How are bulk dock orders shipped in Europe?
We manage dedicated international freight shipping across Germany and all EU countries, delivering complete dock systems directly to your waterfront.
The Drive-on platform for jet skis with a set of connectors for high board modular docks is a professional drive-on dry dock for personal watercrafts (PWC) and jet skis. High-strength HDPE frame featuring polyurethane rollers that protect the gelcoat of your hull from scratching. 100% frostproof and lake ice resistant, locking seamlessly to low board and highboard docks. Dimensions: 142 x 200 x 30 cm (złącza WB), capacity: 450 kg, weight: 42 kg.
