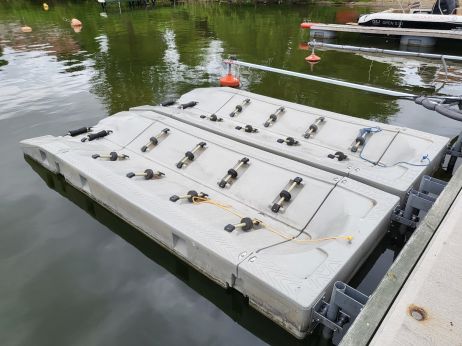

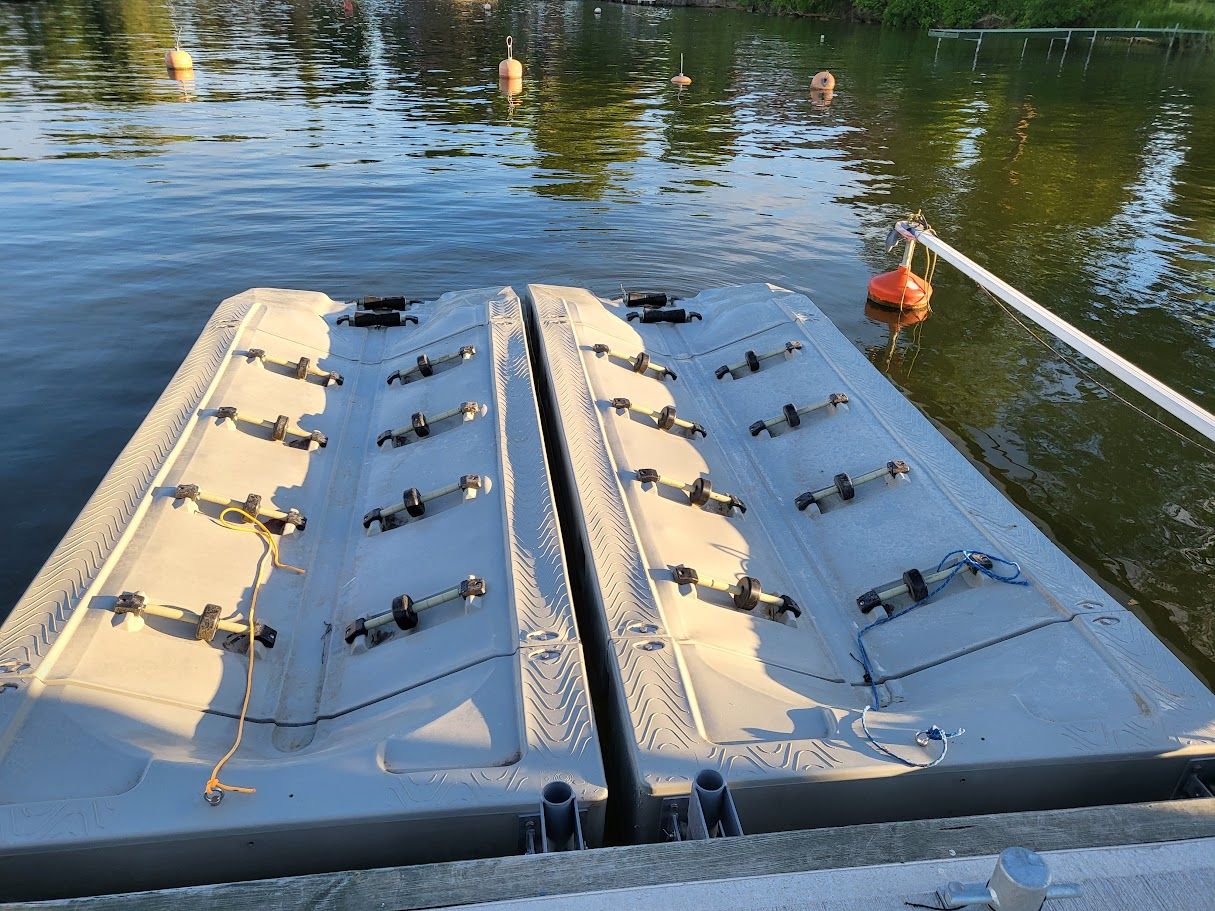

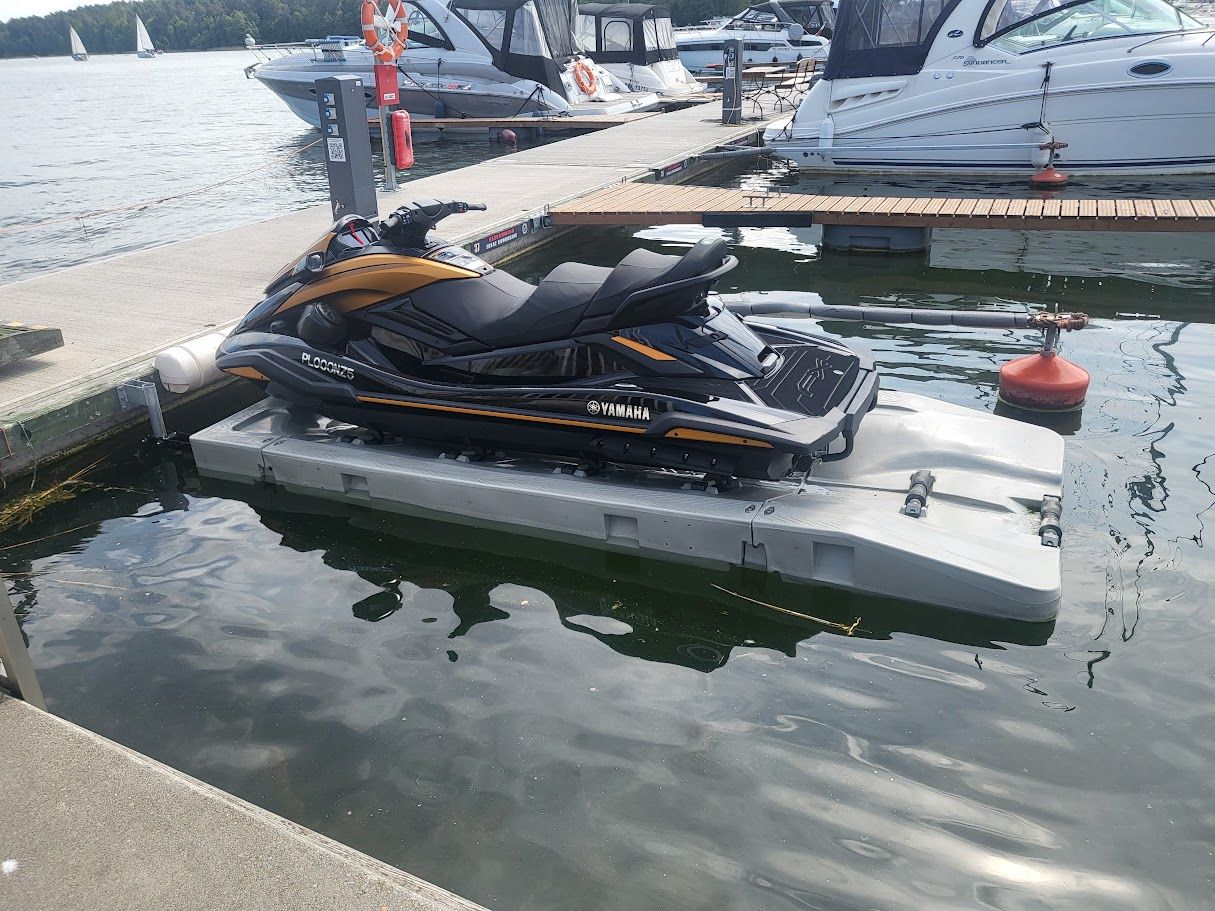

Drive-on Jet Ski Platform with Quay Connector Kit
| Displacement | 770 kg |
|---|---|
| Dimension | 400 cm x 148,5 cm x 32,5 cm |
| Color | Grey |
| Material | Polyethylene |
| Weight | 165 kg |
| Usable area | 5,92 qm |
| Refliectiv | No |
| Shipping time | 7-14 days |
| Production time of 100 pcs | 20 days |
Drive-on Jet Ski Platform with Quay Connector Kit
Looking for a professional dry-docking solution to keep your personal watercraft (PWC) safe and dry next to a concrete or wooden quay? The offered **Drive-on Jet Ski Platform with Quay Connector Kit** (SKU: PONNAJOTH_KPL) is a state-of-the-art drive-on platform (dry dock) designed to let you drive your jet ski out of the water effortlessly. This specific kit comes complete with heavy-duty steel and rubber connector brackets specifically engineered to secure the platform directly to a stationary quay, concrete wall, or non-modular pier. Sourced from premium high-density polyethylene, this setup protects your fiberglass hull from marine growth, osmosis, and wave-induced docking damage.
The Sorfan jet ski drive-on platform is engineered for supreme ergonomics and user comfort. Its robust HDPE frame is fully frostproof and UV-resistant, allowing **our dry docks to remain safely in freezing lake ice** all winter without seasonal disassembly. Precision-engineered rollers (2 keel rollers + 8 bow rollers) guarantee smooth drive-on docking and effortless sliding entry back into the water. Symmetrical high static stability makes fueling, cleaning, wrapping, or boarding your PWC extremely comfortable and secure.
Technical Specification
| Overall dimensions | 400 x 148.5 x 35 cm (4.0 m x 1.485 m) |
| Dry weight (mass) | 150 kg |
| Load Capacity / Buoyancy | 450 kg |
| Drive-on Roller System | 2 rolki pod kil + 8 rolek pod dziób |
| Material Sourced | Formowany rotacyjnie polietylen o wysokiej gęstości (HDPE) z filtrem UV + guma EPDM i stal konstrukcyjna cynkowana ogniowo |
| Connector Type Included | Dedykowany komplet łączników stalowych/EPDM do nabrzeża stałego (drewniane, betonowe, stalowe itp.) |
Key Technical Features and Benefits:

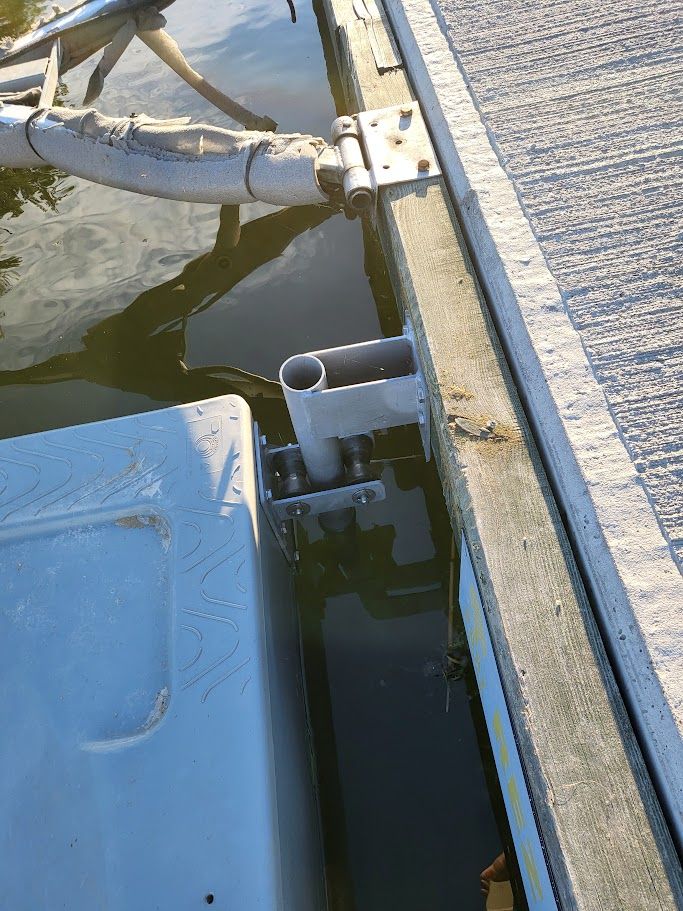

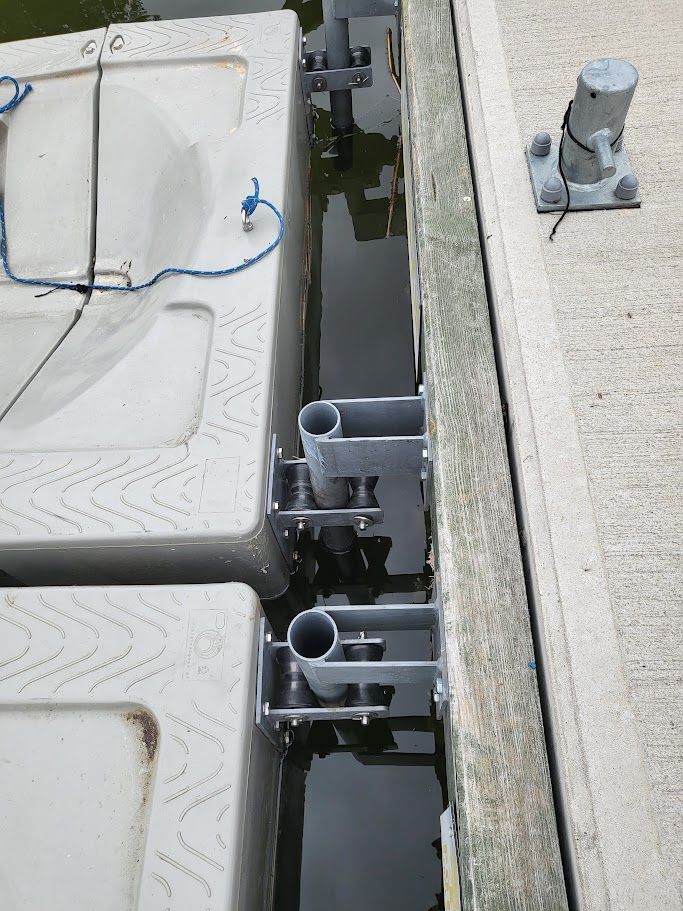

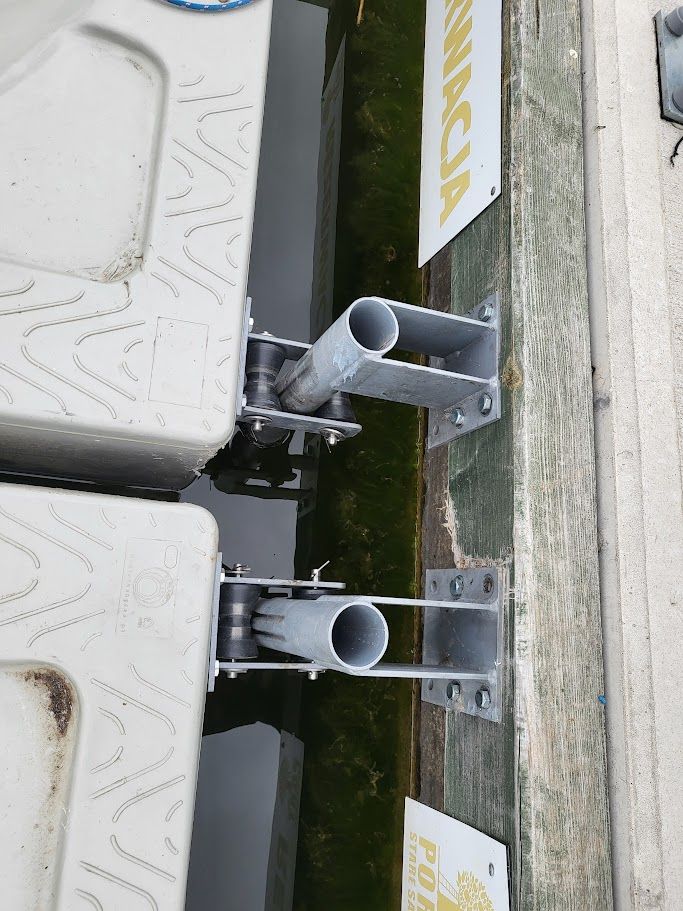

- Stationary Quay Mounting Kit: Includes heavy-duty steel-rubber connector brackets for concrete, steel, or wood walls.
- Winter Ice Overwintering Proof: Extreme temperature resilience eliminates the need for seasonal disassembly.
- Advanced Roller System: 2 central keel rollers and 8 bow rollers ensure seamless drive-on and drive-off performance.
- Seamless EU HDPE Craftsmanship: Sourced from heavy-duty, rotomolded high-density polyethylene for durability.
- 100% Non-Skid Pattern: Textured top surface provides ultimate slip resistance and boarding safety.
Available Accessories for Drive-On Docks
To fully customize your PWC dry dock setup, we offer a comprehensive range of matching high-performance accessories:
- Mooring Cleat – Securely tie down your PWC and stabilize the dry dock.
- Safety Railing Series W (1.12 m) – Enhances boarding safety and passenger convenience.
- Pile Guide WS 5.4 kg (WB series) – Solid pile guide post anchoring for stabilization.
- Float Connector WL 2.3 kg (WB series) – For coupling additional side modules.
- Swim Ladder – Premium aluminum ladder for easy access from the water directly to the dock.
Expert opinion – Secure stationary quay docking for personal watercraft
As a marine infrastructure expert, I highly recommend the PONNAJOTH_KPL dry dock model for stationary quays. Traditional mooring of jet skis against concrete walls exposes the hulls to constant rubbing and impact damage under wave action. Installing a dedicated drive-on platform with a custom quay connection kit solves this issue permanently. Symmetrical polyurethane rollers are strategically positioned to distribute the watercraft's weight evenly, preventing hull deformation. The absolute frost resistance provides significant savings on seasonal labor.
FAQ – Frequently Asked Questions
Does the kit include all hardware required for quay mounting?
Yes. The PONNAJOTH_KPL model is delivered complete with heavy-duty, shock-absorbing steel and rubber bracket connectors designed to attach the platform directly to a stationary quay.
Can the drive-on dock remain frozen in lake ice during winter?
Yes. The modular HDPE structure is fully frostproof and resilient to ice pressure. It can remain frozen in the lake all winter long without any structural risk.
What jet ski sizes and weight limits is this platform designed for?
This dry dock is fully universal, accommodating 2, 3, and 4-person jet skis with a maximum weight capacity of up to 450 kg (buoyancy limit).
Will the rollers scratch the gelcoat on my jet ski's hull?
No. Symmetrical rollers are made of soft, highly durable polyurethane. Symmetrical polymer reduces friction while protecting the gelcoat and fiberglass from scratches during drive-on.
Can the drive-on platform be expanded in the future?
Yes. The Sorfan dry dock is composed of a modular 3-part design. You can easily extend the platform by adding central modules to park multiple jet skis in a line.
What materials are used to construct the platform?
The platform is manufactured in the EU from premium, UV-stabilized high-density polyethylene (HDPE), preventing discoloration and degradation under salt water or sun exposure.
The Drive-on Jet Ski Platform with Quay Connector Kit is a high-performance drive-on dry dock (400 x 148.5 x 35 cm (4.0 m x 1.485 m), capacity: 450 kg) engineered for two, three, and four-person jet skis. Delivered as a complete kit with custom steel-rubber connectors for direct stationary quay mounting. Sourced from high-strength, frostproof HDPE allowing safe lake ice overwintering without seasonal disassembly. Features 2 keel and 8 bow polyurethane rollers.
