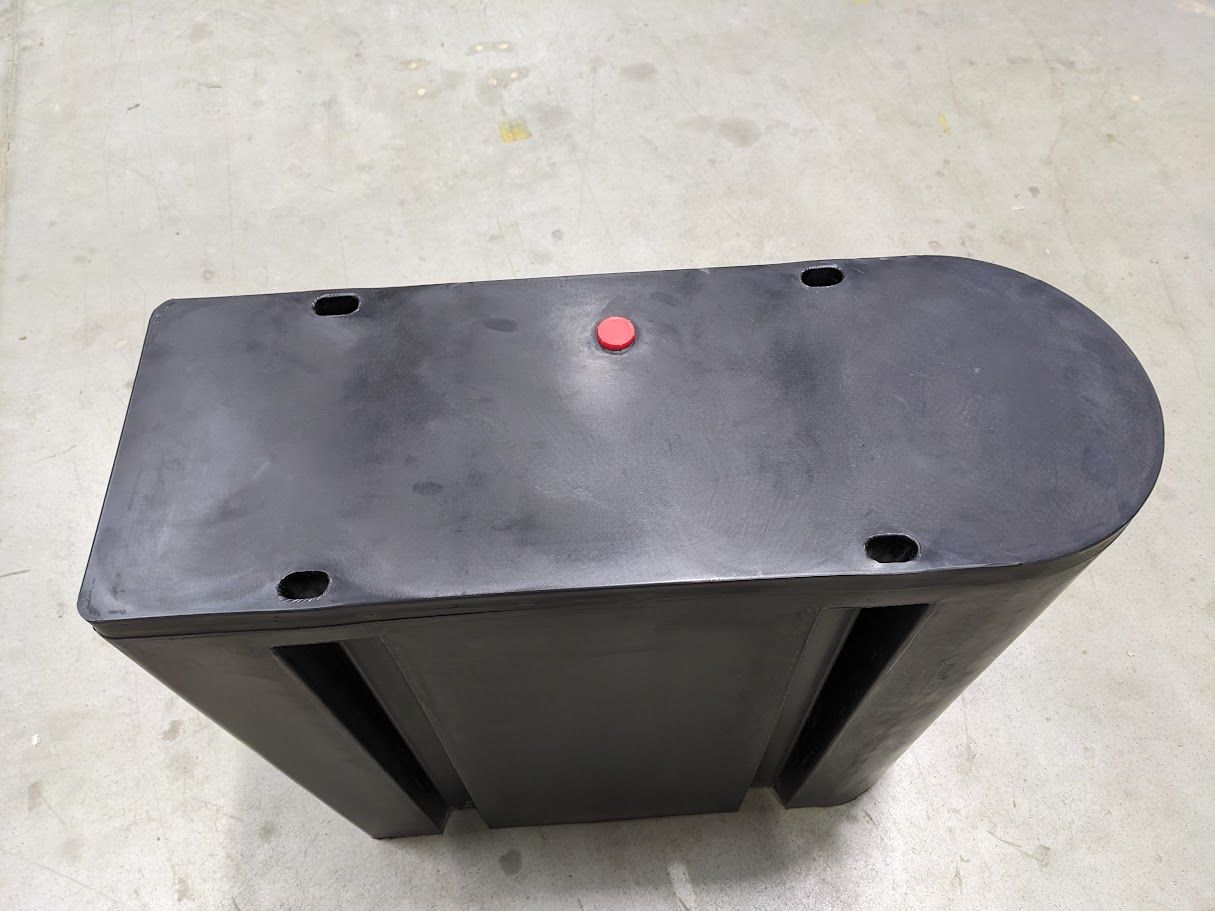

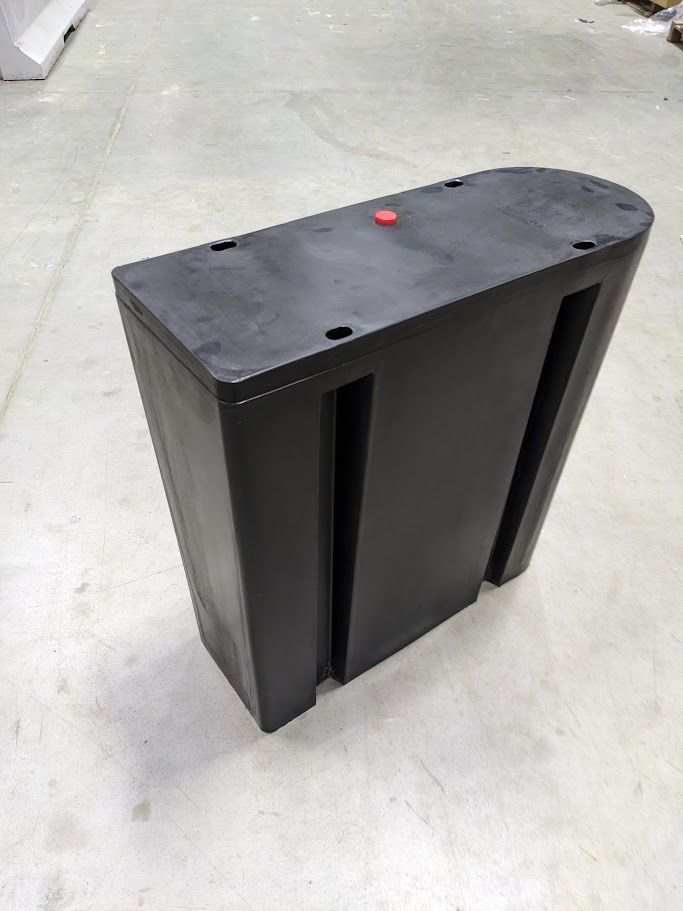

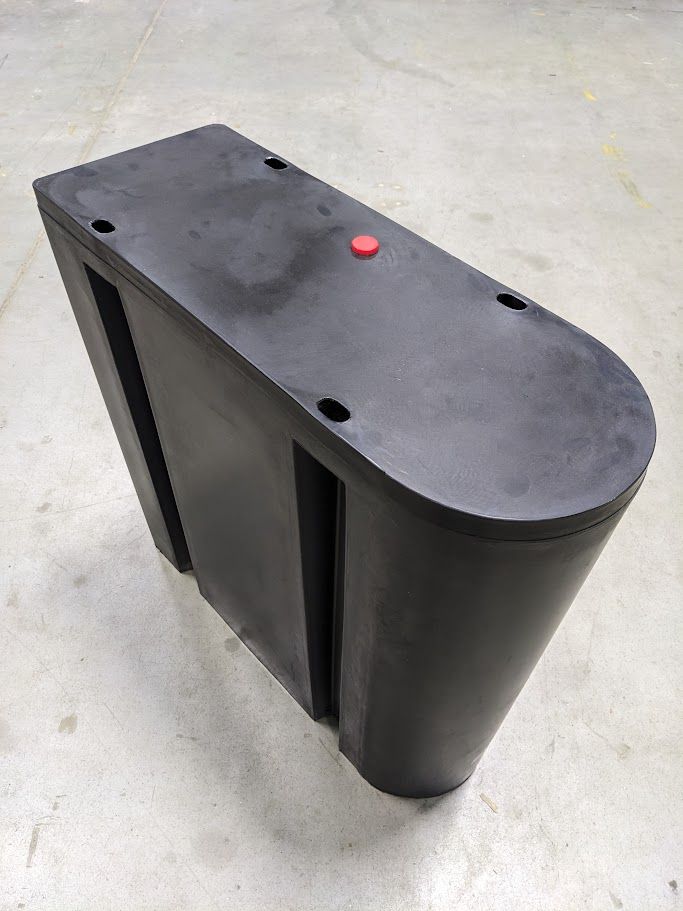

Gateway Pontoon, Y-Bom float without profile holder, black, 190 liters, PE
| Displacement | 190 l |
|---|---|
| Dimension | 80 x 30 x 80 cm |
| Color | Black |
| Material | Polyethylene |
| Weight | 12 kg |
| Refliectiv | No |
| Shipping time | 2-3 days |
| Production time of 100 pcs | 8 days |
Sorfan Y-Boom Float FLAT 190L black – flat top mooring module
Are you designing a modern yacht harbor or expanding a busy marina with safe mooring berths? The professional Sorfan Y-Boom Float is a specialized, narrow buoyancy unit manufactured in Europe, specifically engineered for mooring fingers (finger pontoons). Thanks to its optimized ergonomic shape, it delivers exceptional vessel mooring stability while maximizing active waterway space.
Our high-density polyethylene float features a sleek, narrow profile with dimensions of 80 x 80 x 30 cm and a dry weight of 15 kg, allowing for straightforward mounting directly onto the finger's steel frame. The module provides a substantial nominal buoyancy of 190 kg. This space-saving design permits more berths per dock section, directly boosting harbor profitability.
As a direct European manufacturer, Sorfan guarantees premium structural integrity. Every float is manufactured using rotational molding of virgin high-density polyethylene (HDPE) with a wall thickness of ok. 4 mm. This seamless monolithic hull is 100% proof against heavy impacts, abrasion, rot, and saltwater corrosion. Integrated UV stabilizers prevent plastic degradation, while full frost resistance ensures the floats are lake ice resistant. moorage fingers can remain in the frozen water all winter, saving operators high seasonal removal costs.
Y-Boom floats are designed for modular daisy-chaining. Depending on engineering needs and finger length, multiple floats can be installed in a row to multiply structural buoyancy and stability. As a direct manufacturer, we secure the fastest lead times, factory wholesale pricing, EU-wide freight shipping, and complete quality warranties.
Our Y-boom floats pair perfectly with our buoyancy floats for floating docks. This integration allows you to build a fully unified, highly stable floating dock system with secure mooring fingers, maintaining a professional and premium look across the marina.
Sorfan Y-Boom Floats – Key Technical Advantages:
- Ergonomic Footprint: Narrow hull maximizes dock slip width while ensuring excellent mooring stability.
- Direct Manufacturer: Quick shipping directly from our warehouse, low factory pricing, and full EU logistics.
- HDPE Puncture Proof: Seamless monolithic rotomolded body, fully resistant to frost and freezing ice expansion.
- Modular Buoyancy: Multiple units can be bolted in series under a single finger frame to handle heavier yachts.
- Versatile Marine Use: Mooring fingers, yacht docks, floating technical walks, aquaculture, temporary work platforms.
Detailed Y-Boom Float Technical Specifications and Dimensions
| External dimensions (L x W x H) | 80 x 80 x 30 cm |
| Real nominal buoyancy | 190 kg |
| Dry weight (mass) | 15 kg |
| Wall thickness | ok. 4 mm |
| Hull material | High-density polyethylene (HDPE) with UV protection |
| Kolor | Black |
| Marka | Sorfan |
| Model design feature | Flat top version (FLAT) without recess, ideal for universal under-frame mounting. |
| Primary applications | Y-Boom mooring fingers, yacht slips, marinas, floating docks, floating technical walks, aquaculture, temporary technical platforms |
Expert opinion – Mooring slip optimization and ice-proofing in commercial marinas
Designing profitable and safe marinas requires smart waterway layout optimization. Sorfan Y-boom floats represent the state-of-the-art in space-saving dock technology. Their narrow profile enables slender finger docks, leaving more maneuvering space for yachts and speedboats. Manufactured from high-grade HDPE, these floats maintain full elasticity down to -40°C. This allows fingers to overwinter safely in the frozen ice, drastically reducing the high seasonal maintenance and storage costs for commercial harbor networks.
FAQ – Frequently Asked Questions about Y-Boom Floats
Are you the direct manufacturer of these floats?
Yes, Sorfan is a leading European manufacturer and distributor of professional floats. We hold the widest range of Y-boom and pontoon floats in Poland and one of the largest in Europe. Orders are shipped quickly directly from our own warehouse.
Do the mooring fingers with floats need to be removed in winter?
No. Our floats are made of premium high-density polyethylene (HDPE), which is 100% frost-proof and lake ice resistant. Mooring fingers can remain in the frozen water safely without any risk of crack propagation.
What other industrial projects can these narrow floats support?
Beyond Y-boom fingers, they are ideal for building narrow technical platforms, stabilizing floating walkways, water sports docks, ecological aquaculture rafts, or setting up temporary work pontoons on water.
Do you offer custom colors or custom corporate logo branding?
Yes! We offer a full customization section. For commercial orders, we can manufacture the floats in any custom RAL color, modify dimensions, or emboss your corporate logo permanently into the polyethylene shell during production.
Can I mount multiple floats under a single mooring finger?
Yes. The modular interlocking design allows multiple floats to be placed in series under the steel frame, enabling you to scale buoyancy proportionally for heavier marine vessels.
Do these floats come with a warranty?
Yes, all our products are covered by a full manufacturer's warranty. We utilize only high-grade virgin HDPE with UV stabilizers, ensuring decades of maintenance-free service under severe coastal and fresh-water conditions.
Looking for custom RAL colors, custom dimensions, or corporate branding?
As a direct manufacturer with our own tool design and engineering department, we offer extensive seryal customization. We can adjust colors, emboss brands, or scale dimensions. Contact us directly – our engineering team is ready to prepare a free quote!
Write to our email address: [email protected]
Professional Sorfan Y-Boom Float 80 x 80 x 30 cm is a narrow, ergonomic mooring buoyancy module delivering 190 kg of buoyancy with a weight of 15 kg. Manufactured in Europe from thick-walled HDPE, featuring full saltwater, UV, and lake ice resistance. Maximizes space utilization in busy marinas and yacht harbors. Color: Black.
