Connector for FLEX Cube Pontoon System II
| Dimension | 17 x 19 x 5 cm |
|---|---|
| Color | Grey |
| Material | Polyethylene |
| Weight | 0,5 kg |
| Refliectiv | No |
| Shipping time | 7-14 days |
| Production time of 100 pcs | 12 days |
Connector for FLEX Cube Pontoon System II

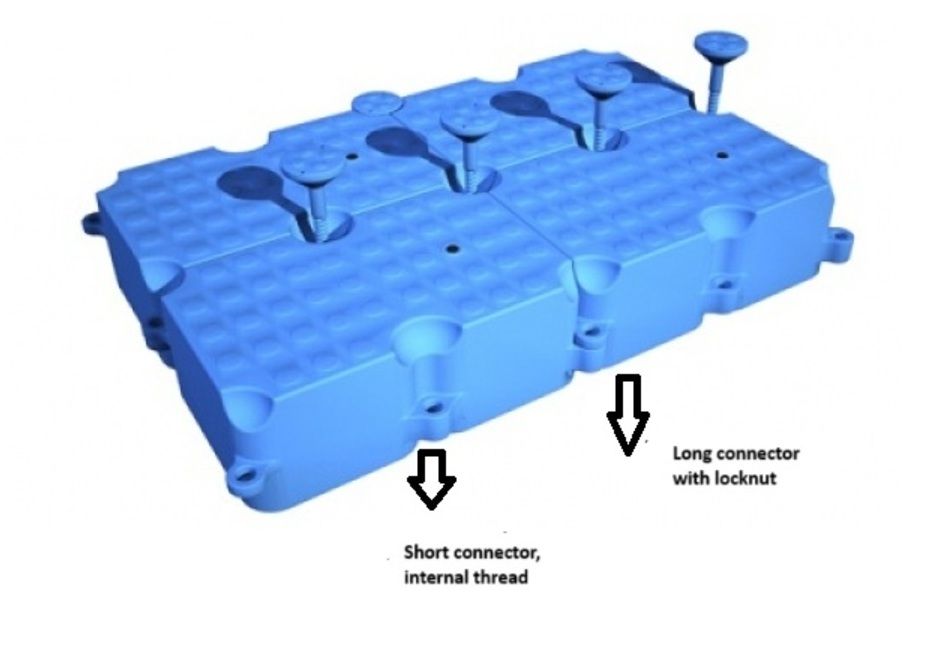

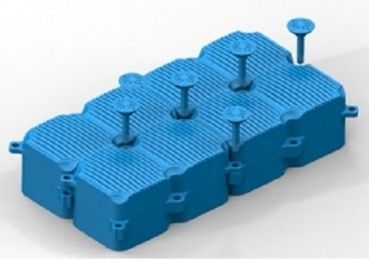

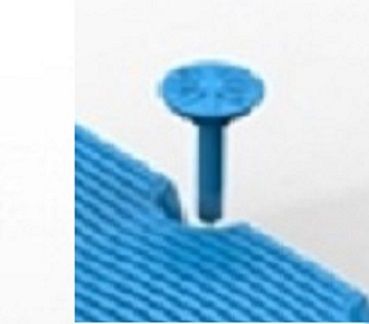

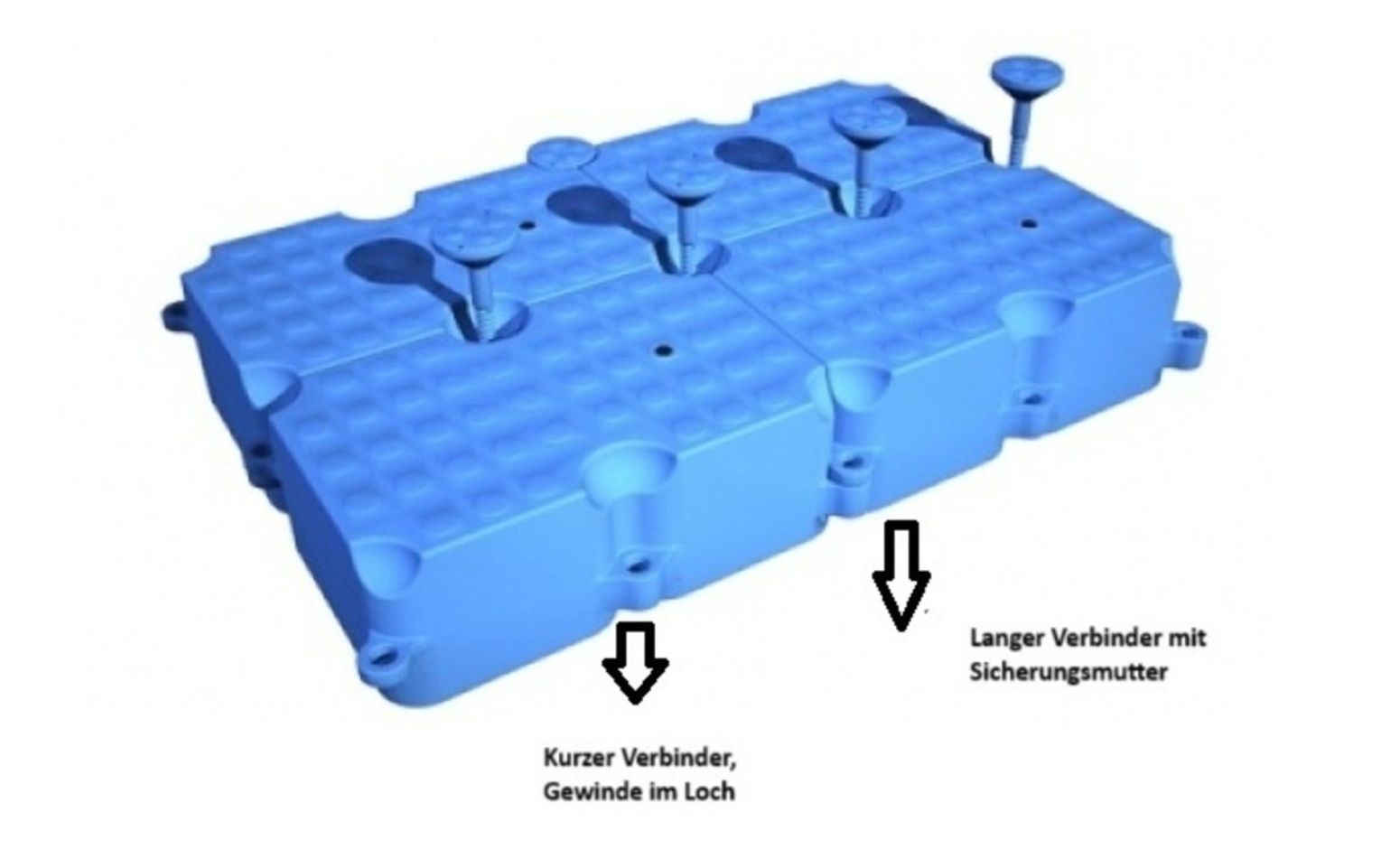

Looking for robust, precision-engineered hardware to connect your modular floating platforms? The offered Connector for FLEX Cube Pontoon System II is a professional mounting connector (interlocking pin) manufactured in the EU from frostproof and UV-resistant PE composite. It is specifically engineered to distribute torsional stresses and absorb wave-induced dynamic loads between interlocking pontoon modules, ensuring structural integrity. Installation is quick and simple, achieved by tightening the connector pin from above into the mounting tabs of the cubes using a matching FLEX assembly key.
Thanks to precision engineering, the head of the connector bolt sits completely flush with the top surface of the cubes once tightened, creating a smooth, trip-free, and safe walking surface. The heavy-duty material is completely resistant to rust, saltwater corrosion, and rot, enabling the connectors to safely overwinter frozen in the ice with the floating dock without cracking.
Technical Specification
| Connector dimensions | 17 x 19 x 5 cm |
| Dry weight | 0.5 kg |
| Purpose / Application | Connecting and interlocking FLEX II float modules together |
| Material Sourced | Wytrzymały, mrozoodporny kompozyt polietylenowy (PE) z filtrem UV |
| Color | Grey |
Key Features and Technical Benefits:
- Stress Absorption: Symmetrical polymer absorbs torsional mechanical loads on mounting tabs.
- Frostproof Design: Cold resistance allows the connector pins to remain safely in freezing lake ice.
- Flush Finish: Sits flush with the float top, preventing trip hazards for passengers.
- UV-Stabilized: Prevents premature aging, cracking, and degradation under direct sunlight.
Expert opinion – Symmetrical engineering in system connectors
In modular floating docks, connection pins bear the main mechanical stresses under wave action. I strongly advise against using non-original hardware. Our original composite connectors have a calibrated modulus of elasticity, allowing the dock to bend under wave dynamics without breaking the interlocking tabs. The flush-mount head is a crucial safety feature.
FAQ – Frequently Asked Questions
How many connectors do I need to link the cubes?
Typically, at least 2 to 3 connecting pins are required per joint, depending on the platform layout configuration.
Do the connectors crack under wave pressure?
No. Symmetrical polymer composite pins flex under dynamic load, absorbing wave energy instead of cracking.
Do I need any special tools for installation?
We recommend using the official FLEX assembly key, which matches the bolt head profile, ensuring a safe and tight fit.
The Connector for FLEX Cube Pontoon System II is a heavy-duty connection pin (17 x 19 x 5 cm, weight: 0.5 kg) designed to lock FLEX modular cube pontoons. Manufactured in the EU from UV-resistant, frostproof PE composite. Sits completely flush with the deck top for passenger safety.
